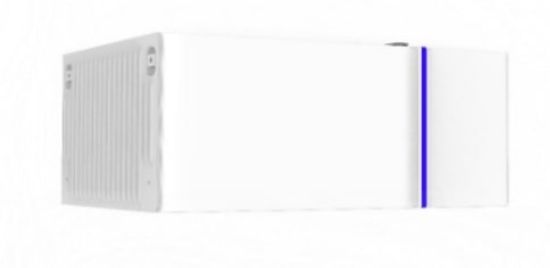

Акумуляторна батарея модульна Deye GB-L 102,4V 40AH (GB-LM4.0)

Key Features:

1. Safety First: The GB-L system prioritizes safety with built-in explosion relief devices to manage gas buildup and fire protection devices that can cut off the fire source within 3 seconds.
2. High-Voltage Stack: Our unique design connects modules in series without the need for cable connections, and the high-voltage platform enhances overall system efficiency.
3. Advanced Thermal Management: Temperature detection is implemented for key components, including cells and power plug-ins, ensuring optimal performance and longevity.
4. Wide Temperature Operation: An optional heating function allows the GB-L system to operate in low-temperature environments, making it suitable for a wide range of applications.
5. Environmental Friendliness: With an IP protection grade of 65 and an anti-corrosion grade of ≥ C2, the GB-L system is built to withstand harsh conditions while minimizing its environmental impact.
6. Intelligent and Visual: The system supports remote upgrades, real-time battery warning information push, and LCD data display for easy monitoring and management.

Specifications:

• System Nominal Voltage: 204.8V to 614.4V (depending on the number of battery modules)
• System Operating Voltage: 166.4V to 700V
• System Energy: 8.18kWh to 24.54kWh (depending on the number of battery modules)
• System Usable Energy: 7.36kWh to 22.10kWh (depending on the number of battery modules)
• Charge/Discharge Current: 20A (recommended), 40A (nominal), 50A (peak discharge for 2 mins at 25°C)
• Working Temperature: Charge: 0~55°C/Discharge: -20~60°C
• Humidity: 5%~90%
• IP Rating of Enclosure: IP65
• Storage Temperature: 0°C to 35°C
• Dimensions: 540 x 385 x 650mm to 540 x 385 x 1530mm (depending on the number of battery modules)
• Weight: 97kg to 253kg (depending on the number of battery modules)
• Installation Location: Floor Mount

The Deye GB-L Modular Battery System is the perfect choice for those seeking a reliable, efficient, and customizable energy storage solution. With its advanced features, wide operating temperature range, and environmental friendliness, the GB-L system is suitable for a variety of applications. Choose Deye for your energy storage needs and experience the difference in performance and quality.
